Item No.: PN25070401

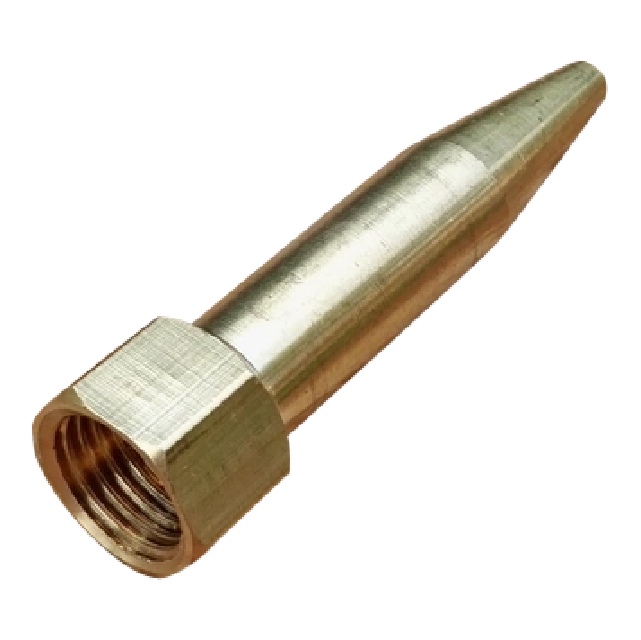

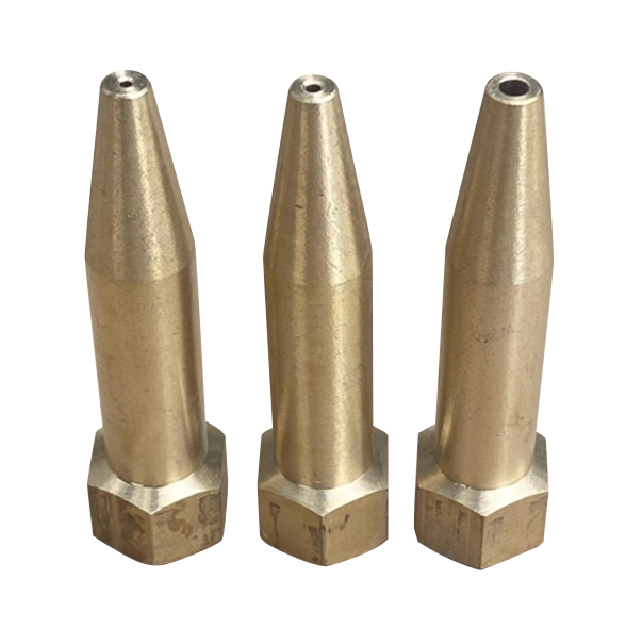

M14 Brass Jet Nozzle with Internal Thread – High-Pressure Sprayer Tip for Long-Range Applications
This M14 Brass Jet Nozzle features an M14*1.5 internal thread, specially designed to fit most sprayer equipment interfaces. Custom thread sizes are also available upon request.
Water Inlet: M14*1.5 internal thread (customizable)
Outlet Inner Diameter Options: 1mm, 2mm, 3mm
Ceramic Nozzle Hole Sizes (optional): 0.6mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm
Working Temperature Range: -10℃ to 120℃
Operating Pressure: 0.1 – 3.5 MPa
Spray Distance: 5 to 15 meters
Fine mist spray with small orifice sizes – ideal for short-range atomization.
Direct jet spray with larger orifice sizes – powerful, long-distance reach.
All-brass construction ensures durability, corrosion resistance, and high-pressure tolerance.
Pointed jet nozzle design delivers strong impact and extended spray distance.
Optional ball valve can be added to adjust water flow and spray range.
M14 Brass Jet Nozzle with Internal Thread – High-Pressure Sprayer Tip for Long-Range Applications
This M14 Brass Jet Nozzle features an M14*1.5 internal thread, specially designed to fit most sprayer equipment interfaces. Custom thread sizes are also available upon request.
Water Inlet: M14*1.5 internal thread (customizable)
Outlet Inner Diameter Options: 1mm, 2mm, 3mm
Ceramic Nozzle Hole Sizes (optional): 0.6mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm
Working Temperature Range: -10℃ to 120℃
Operating Pressure: 0.1 – 3.5 MPa
Spray Distance: 5 to 15 meters
Fine mist spray with small orifice sizes – ideal for short-range atomization.
Direct jet spray with larger orifice sizes – powerful, long-distance reach.
All-brass construction ensures durability, corrosion resistance, and high-pressure tolerance.
Pointed jet nozzle design delivers strong impact and extended spray distance.
Optional ball valve can be added to adjust water flow and spray range.
